orcad PCB Editor shortcut alias

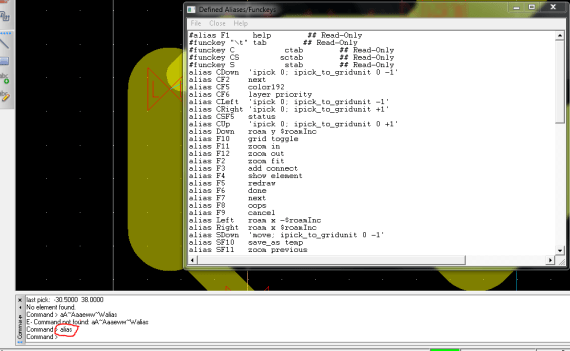

I command promt skrives alias og shortcuts kommer frem, og kan bruger tilpasses. Commandpromt enables under fanebladet view -> windows
Standard PCB editor alias setup
#alias F1 help ## Read-Only
#funckey “\t” tab ## Read-Only
#funckey C ctab ## Read-Only
#funckey CS sctab ## Read-Only
#funckey S stab ## Read-Only
alias CDown ‘ipick 0; ipick_to_gridunit 0 -1’
alias CF2 next
alias CF5 color192
alias CF6 layer priority
alias CLeft ‘ipick 0; ipick_to_gridunit -1’
alias CRight ‘ipick 0; ipick_to_gridunit +1’
alias CSF5 status
alias CUp ‘ipick 0; ipick_to_gridunit 0 +1’
alias Down roam y $roamInc
alias F10 grid toggle
alias F11 zoom in
alias F12 zoom out
alias F2 zoom fit
alias F3 add connect
alias F4 show element
alias F5 redraw
alias F6 done
alias F7 next
alias F8 oops
alias F9 cancel
alias Left roam x -$roamInc
alias Right roam x $roamInc
alias SDown ‘move; ipick_to_gridunit 0 -1’
alias SF10 save_as temp
alias SF11 zoom previous
alias SF12 zoom world
alias SF2 property edit
alias SF3 slide
alias SF4 show measure
alias SF5 copy
alias SF6 move
alias SF7 dehilight all
alias SF8 hilight pick
alias SF9 vertex
alias SLeft ‘move; ipick_to_gridunit -1’
alias SRight ‘move; ipick_to_gridunit +1’
alias SUp ‘move; ipick_to_gridunit 0 +1’
alias Up roam y -$roamInc
alias bubset ‘settoggle shove_mode Off “Hug preferred” “Shove preferred”; options bubble_space $shove_mode’
alias cdnshelp cdsdoc
alias dehilite dehilight
alias edps padedit
alias hilite hilight
alias ipickx ipick
alias ipicky ipick 0
alias ix ipick
alias iy ipick 0
alias pickx pick
alias picky pick l
alias reopen open -q $module
alias revert open -q $module
alias rps replace padstack
alias sar set pcb_autoroam
alias smoothset ‘settoggle smooth_mode Off Minimal Full; options smooth_level $smooth_mode’
alias uar unset pcb_autoroam
alias unplrp report unplaced
alias window zoom
alias x pick
alias y pick l
alias ~B bubset
alias ~C smoothset
alias ~D delete
alias ~N new
alias ~O open
alias ~S save
alias ~Z undo
funckey + subclass -+
funckey – subclass —
