Mosfet driver ir2104

29. juni 201221. marts 2015 techmind 0 Kommentarer ir2104, mosfet driver

Ir 2104 specifikationer:

Half Bridge Driver IC
Floating Channel Designet til Bootstrap Operation
Gate Drive Supply fra 10V til 20V
Matched Propagation Delay for begge kanaler
Undervoltage Lockout
3.3V ,5V and 15V Input Logic Compatible

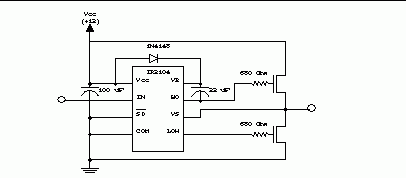

Typisk diagram IR2104

På indgngen påføres PWM signal på feks 50 khz og dutycycle kan så varieres når ir2104 ønskes brugt til power conversion: buck, boost, inveterer
